Integrated controller systems for high-speed wire forming, spring coiling, and multi-axis automation.
High-performance control for demanding production
Our controller lineup is engineered for stable multi-axis synchronization, fast cycle times, and dependable operation in high-temperature, high-dust industrial environments. Flexible I/O, rich communication interfaces, and a modern HMI platform enable accurate motion control, fast setup, and remote monitoring for wire forming and spring manufacturing lines.
Performance Highlights
Key benefits extracted from the provided reference material.
Control & Connectivity
- Adaptive multi-axis synchronization with speed priority control.
- Integrated length gauge and feedback correction for consistent output.
- On-site I/O programming and 3D wire simulation support.
- Remote device management and remote desktop capability.
HMI & Hardware

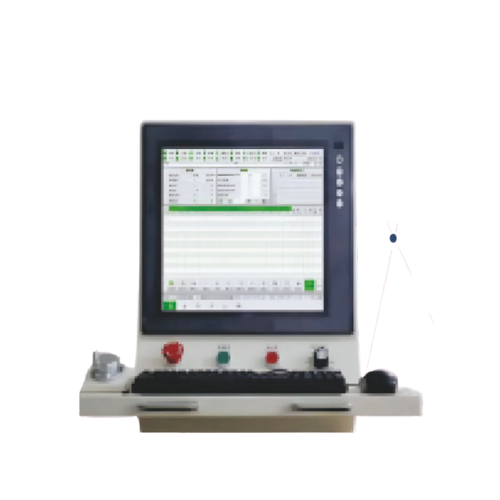

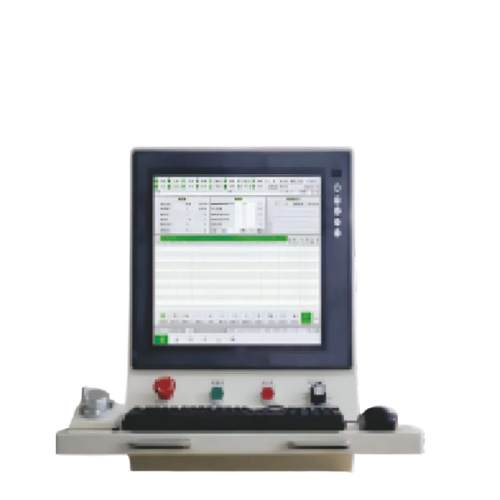

- High-brightness 17-inch LCD with reinforced touchscreen.
- Low-power ARM CPU with fanless cooling for harsh environments.
- Optional 2G/4G global communication module for remote control.

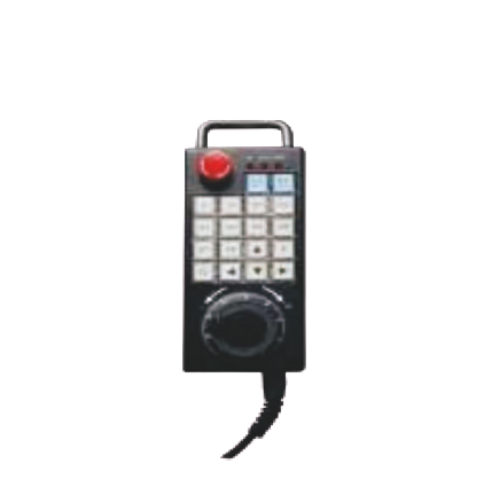

- Handwheel pendant with emergency stop and programmable keys.
Controller I/O Specification

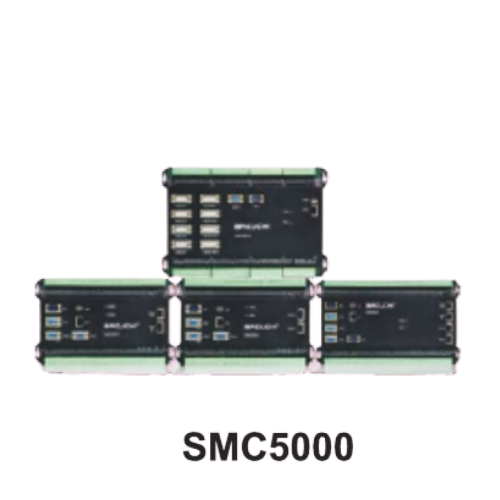

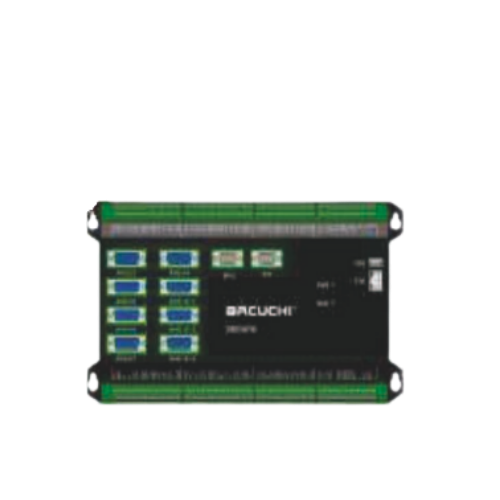

SMC series input, output, and communication specification.
| Parameter | SMC5008 | SMC5014S | SMC5016 |
|---|---|---|---|
| DI input | 32 | 48 | 48 |
| DO output | 24 | 39 | 39 |
| AI analog input | 2 | 2 | 2 |
| AO-Vdd analog output | 2 | 2 | 2 |
| Servo Pulse Pulse servo axis | 8 | 14 | 16 |
| Servo Bus Bus servo axis | 0 | 0 | 0 |
| Encode encoder | 0 | 2 | 2 |
| EtherCAT | 0 | 0 | 0 |
| RTEX | 0 | 0 | 0 |
| Ethernet | 1 | 1 | 1 |
| USB | 1 | 1 | 1 |
| CAN | 1 | 0 | 0 |
| RS422 | 0 | 0 | 0 |
| RS485 | 2 | 3 | 3 |
| Cycle | Sri500 | 400 μS | 400 μS |
| Interpolation algorithm | Support | Support | Support |
| Multi-axis synchronization | Support | Sync/Speed | Sync/Speed |
| Integrated Inspector | - | Visual/capacitive | Visual/capacitive |
| Graphical programming | Support | Support | Support |
| IO field programming | Support | Support | Support |
| Log function | Support | Support | Support |
| Remote desktop | Support | Support | Support |
| Remote device | Support | Support | Support |
Display Specifications
WirHMI series display hardware specification.

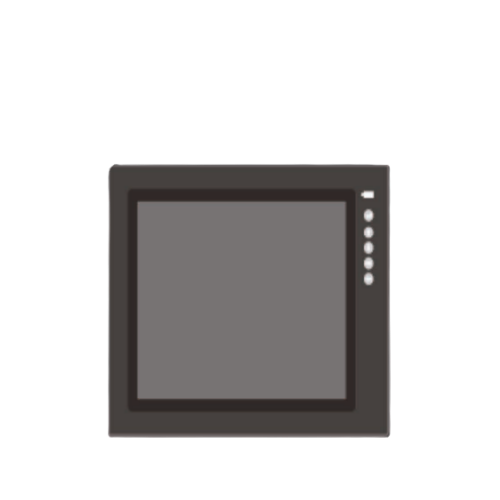

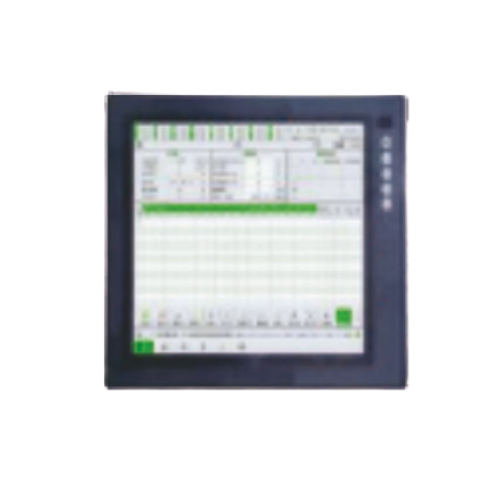

| Model | WirHMI-170-40 | WirHMI-0170-30 | WirHMI-0170-20 | WirHMI-0170-10 | WirHMI-0170-00 |
|---|---|---|---|---|---|
| CPU | ARM 1GHz | ARM 600MHz | ARM 600MHz | ARM 600MHz | ARM 600MHz |
| Memory | 512MB | 128MB | 128MB | 128MB | 128MB |
| Flash | 512MB | 128MB | 128MB | 128MB | 128MB |
| SD | 64G (Optional) | NA | NA | NA | NA |
| Size | 17.0" | 17.0" | 17.0" | 17.0" | 17.0" |
| Resolution | 1280x1024 | 1280x1024 | 1280x1024 | 1280x1024 | 1280x1024 |
| Backlight source | LED | LED | LED | LED | LED |
| Touchscreen | NA | Resistive | NA | NA | NA |
| Touch the button | 0 | 0 | 0 | 0 | 64 |
| Indicator light | 0 | 0 | 0 | 0 | 40 |
| Universal keyboard | 1 | 1 | 1 | 1 | 0 |
| Mouse | 1 | 1 | 1 | 1 | 1 |
| Ethernet | 2 | 1 | 1 | 1 | 1 |
| RS422 | 1 | 1 | 1 | 1 | 1 |
| RS485 | 1 | 1 | 1 | 1 | 1 |
| RS232 | 1 | 1 | 1 | 1 | 1 |
| USB | 2 | 2 | 2 | 2 | 2 |
| Wireless Communications | 2G/4G Global frequency bands | NA | NA | NA | NA |
| Operating system | Linux OS | Linux OS | Linux OS | Linux OS | Linux OS |
| UI system | Arcuchi WinDraw | Arcuchi WinDraw | Arcuchi WinDraw | Arcuchi WinDraw | Arcuchi WinDraw |
| Remote device management | Support | NA | NA | NA | NA |
