Furnance

Model SFI-01 combines rotary retort, pit-type, car-bottom, and box-type furnace solutions.

SFI-01
Furnance SFI-01

Heat treatment built for production flow

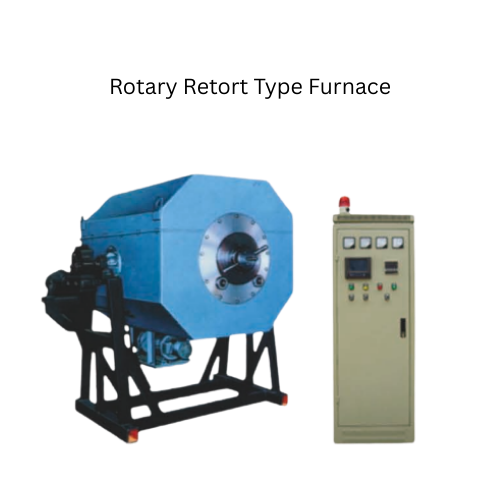

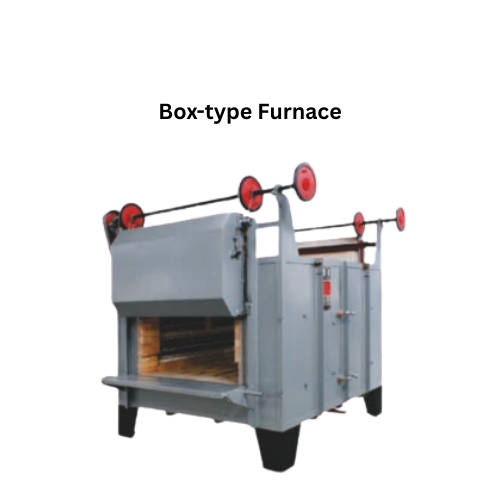

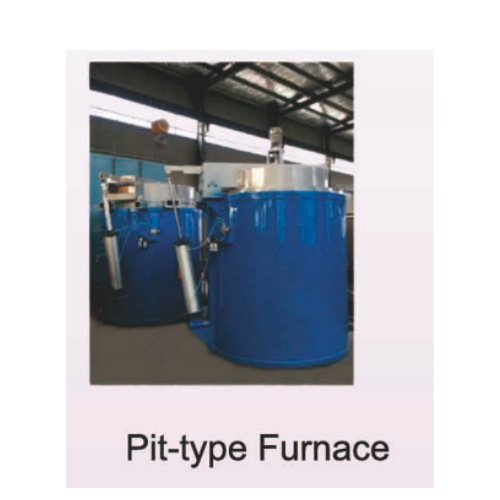

The SFI-01 furnance range covers rotary retort type furnaces for uniform heating, pit-type furnaces for vertical loading, car-bottom furnaces for heavy parts, and box-type furnaces for batch heat treatment. Each configuration is engineered for steady temperature control and repeatable output.

Request Quote Back to Category

Specification

Specification extracted from the provided reference image.

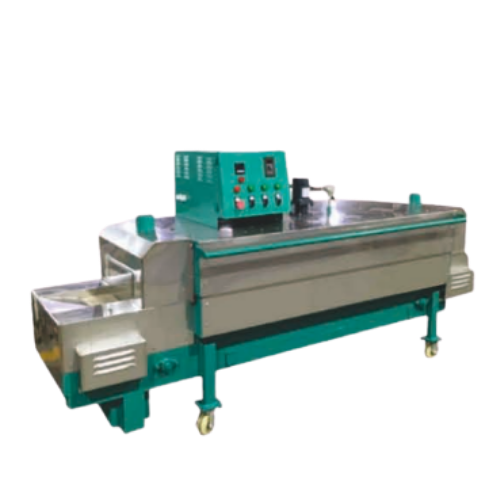

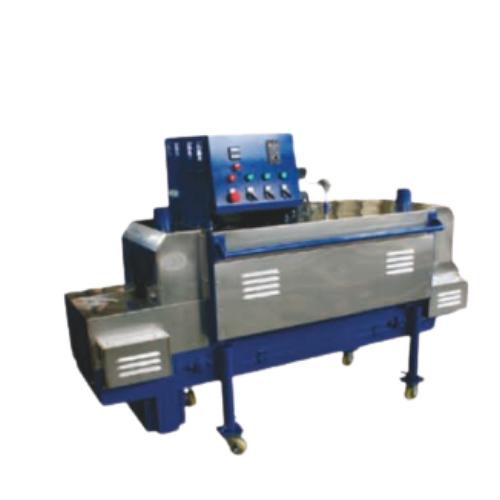

Models Outside Dimensions (mm) Hearth Dimensions (mm) Power (kw) Max. Temperature (C) Tempering Time (min) Diameter of Tempered Pieces (mm) Output of Tempered Pieces (kg/h) Weight (kg)
L W H L W H
RJC206 1600 750 1300 600 200 60 6 500 1.5-20 0.1-3 10-20 200
RJC210 2000 750 1300 1000 200 90 8 500 2.5-40 0.1-6 18-25 250
RJC215 2600 750 1300 1500 200 90 12 500 4-50 0.1-6 25-35 350
RJC315 2600 850 1320 1500 300 90 16 500 4-50 0.1-6 35-50 750
RJC320 3300 850 1400 2000 300 90 20 500 6-60 0.1-6 50-70 950
RJC420 3300 950 1400 2000 400 90 26 500 6-60 0.5-6 60-80 1000
RJC425 3900 950 1400 2500 400 100 30 500 6-60 0.5-6 70-90 1200
RJC430 4400 950 1500 3000 400 100 35 500 8-60 0.5-6 80-120 1300
RJC440 6100 1050 1600 4000 400 120 52 500 12-60 1-12 130-180 2200
RJC520 4100 1100 1800 2000 500 100 35 500 8-50 0.5-10 80-100 1400
RJC530 5100 1100 1950 3000 500 120 45 500 10-60 0.5-10 150-180 1800
RJC540 6100 1100 1950 4000 500 130 60 500 12-60 1-14 200-250 2400
RJC550 7100 1100 1950 5000 500 130 75 500 14-90 1-16 250-300 2800
RJC560 8100 1100 1950 6000 500 150 90 500 14-90 1-16 300-500 3600
