Furnance

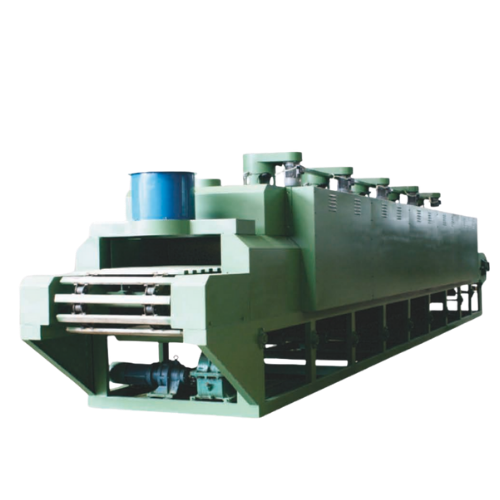

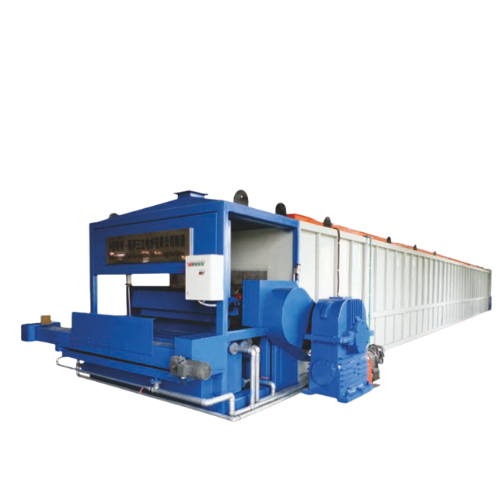

Model SFI-03 supports conveyor-style tempering with consistent heating zones and stable output.
Continuous tempering built for scale
SFI-03 furnance systems are designed for steady temperature control with conveyor chain transfer, ensuring uniform heating across multiple zones. The range is ideal for high-throughput tempering where repeatable heat profiles and consistent outputs are essential.
Specification
Specification extracted from the provided reference image.
| Models | Hearth Dimensions (mm) | Outside Dimensions (mm) | Power (kw) | Max. Temperature (C) | Conveyor Chain Speed Range (m/min) | Heating Zones | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| L | W | H | L | W | H | |||||
| TSL880 | 8000 | 800 | 300 | 11000 | 1900 | 2200 | 165 | 600 | 20-120 | 5 |
| TSL890 | 9000 | 800 | 300 | 12000 | 1900 | 2200 | 180 | 600 | 30-180 | 6 |
| TSL980 | 8000 | 900 | 300 | 11000 | 2000 | 2200 | 180 | 600 | 20-120 | 5 |
| TSL990 | 9000 | 900 | 300 | 12000 | 2000 | 2200 | 220 | 600 | 30-180 | 6 |
| TSL1080 | 8000 | 1000 | 300 | 11000 | 2100 | 2200 | 220 | 600 | 20-120 | 5 |
| TSL1090 | 9000 | 1000 | 300 | 12000 | 2100 | 2200 | 240 | 600 | 30-180 | 6 |
| TSL1180 | 8000 | 1100 | 300 | 11000 | 2200 | 2200 | 240 | 600 | 20-120 | 5 |
| TSL1190 | 9000 | 1100 | 300 | 12000 | 2200 | 2200 | 270 | 600 | 30-180 | 6 |
| TSL1280 | 8000 | 1200 | 350 | 11000 | 2300 | 2200 | 270 | 600 | 20-120 | 5 |
| TSL1290 | 9000 | 1200 | 350 | 12000 | 2300 | 2200 | 300 | 600 | 30-180 | 6 |
