Special Purpose Machine
SFI3DR / SFI3D / SFITH Series

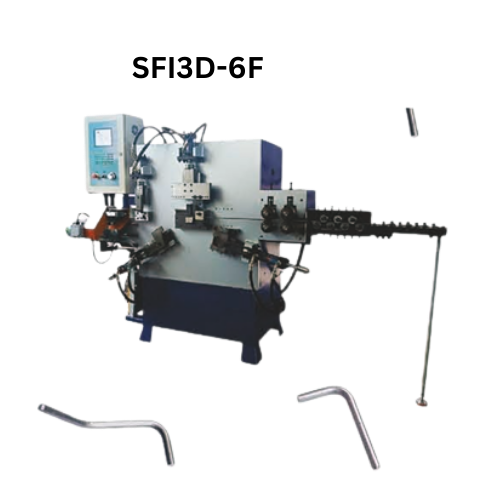

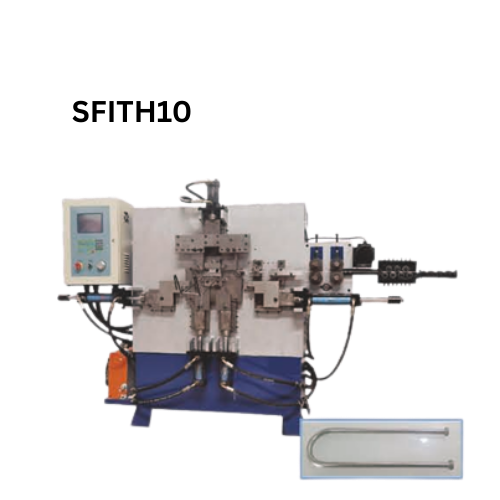

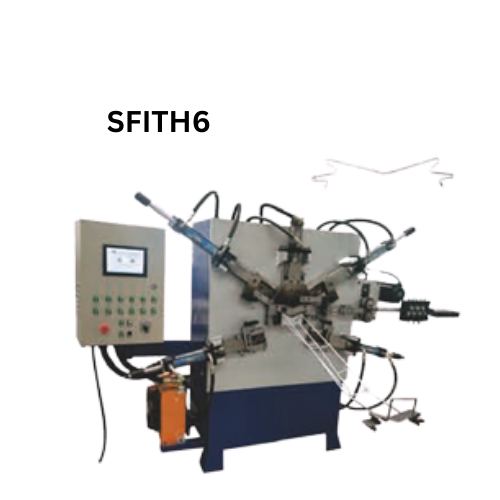

Hydraulic CNC machines for ring and shaped wire forming with touch-screen automation.
Hydraulic CNC ring and shape forming
- Hydraulic system with CNC control and touch screen for automatic operation.
- Processes include feeding, straightening, cutting, twisting ring, ear punch, and forming.
- Supports customized shaped rings for different applications.
- Built for stable production of complex wire forms.
Technical Parameter
Specifications extracted from the provided image.
| Model | SFI3DR-50 | SFI3DR-60 | SFI3D-6F | SFITH6 | SFITH8 | SFITH10 |
|---|---|---|---|---|---|---|
| Function | 9 action | 11 action | 6 cylinders | 6 cylinders | 8 cylinders | 10 cylinders |
| Wire Size | 2.0-5.0 mm | 3.0-6.0 mm | 2.0-6.0 mm | 2.0-4.0 mm | 2.0-4.0 mm | 2.0-4.0 mm |
| Feeding Length | 900 mm | 700 mm | 600 mm | 0-600 mm | 0-600 mm | 0-650 mm |
| Production Rate | 8-10 pcs/min | 8-10 pcs/min | 30 pcs/min | 18-20 pcs/min | 18-20 pcs/min | 15-20 pcs/min |
| Motor Power | 5.5 kw | 5.5 kw | 7.5 kw | 5.5 kw | 5.5 kw | 5.5 kw |
| Size (L x W x H) cm | 187 x 110 x 198 | 191 x 110 x 198 | 195 x 127 x 180 | 190 x 127 x 180 | 190 x 127 x 180 | 205 x 130 x 190 |
| Weight | 1200 kg | 1300 kg | 1200 kg | 1100 kg | 1200 kg | 1400 kg |
