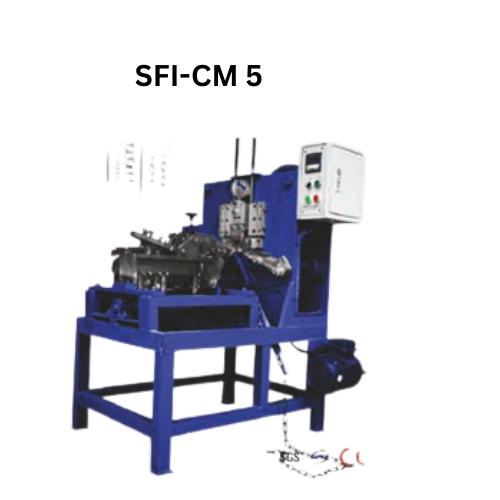

Special Purpose Machine
SFI-CM / CIR Series

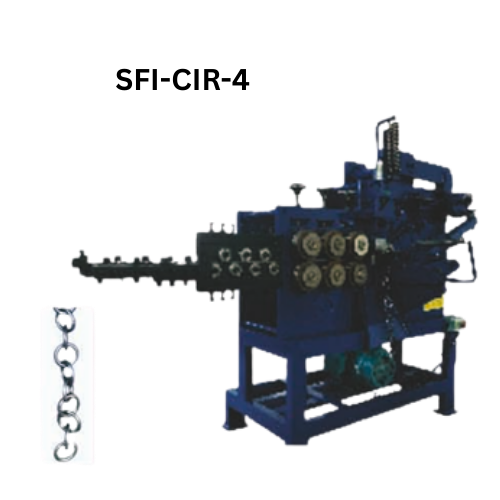

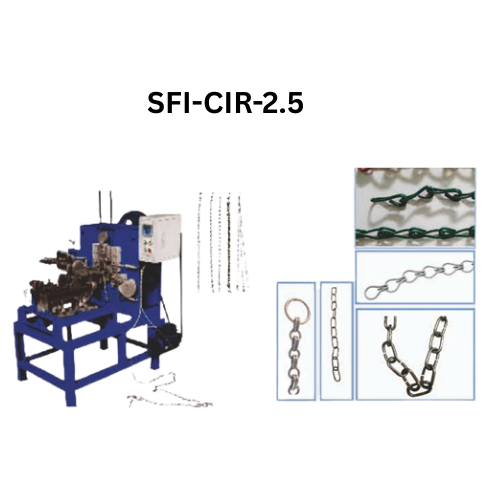

Chain making machines for ring chains, elliptical chains, and double hook chains.
Chain making with practical and efficient design
- Produces ring chains, elliptical chains, and chain links.

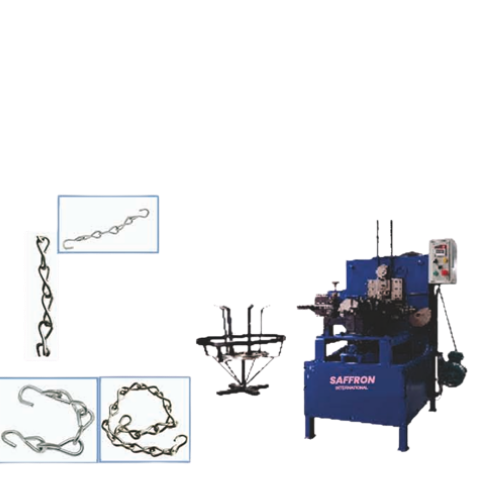

- Double hook chain options with or without rubberized galvanized wire.
- Mechanical design for simple, economical operation.
- Production capacity up to 80 pcs per minute.
Technical Parameter
Specifications extracted from the provided image.
| Model | SFI-CM 5 | SFI-CIR-2.5 | SFI-CIR-4 | SFI-CIR-6 | SFI-DCM2.5 | SFI-BZ4 |
|---|---|---|---|---|---|---|
| Wire size | 1.5-5.0 mm | 1.0-2.5 mm | 1.5-4.0 mm | 2-6.0 mm | 1.0-2.5 mm | 1.5-4.0 mm |
| Production capacity/minute | 40-50 pcs | 40-50 pcs | 40-50 pcs | 40-50 pcs | 80 pcs | 60 pcs |
| Motor power | 1.5 kw | 1.1 kw | 1.5 kw | 2.2 kw | 1.1 kw | 1.5 kw |
| Dimensions (L x W x H) cm | 125 x 115 x 161 | 125 x 100 x 161 | 135 x 100 x 161 | 145 x 110 x 161 | 123 x 113 x 147 | 130 x 115 x 161 |
| Weight | 600 kg | 550 kg | 600 kg | 650 kg | 600 kg | 600 kg |
