Special Purpose Machine
SFI-CN Series
High-efficiency CNC production for rivet-end and custom-shaped wire forms.
Stable CNC control for complex wire forms
- CNC industrial computer control with stable operation and low failure rate.
- Convenient maintenance with USB storage and remote assistance support.
- Three-year guarantee period for the controlling system.
- Automatic feeding, straightening, cutting, bending, and rivet punching.
- Plastic gripper inserting available for finished product requirements.
Technical Parameter
Specifications extracted from the provided images.

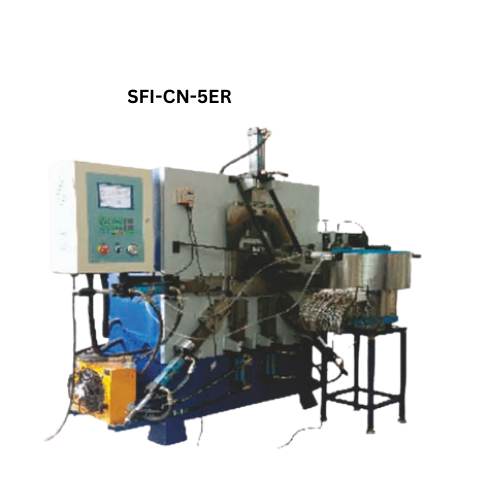

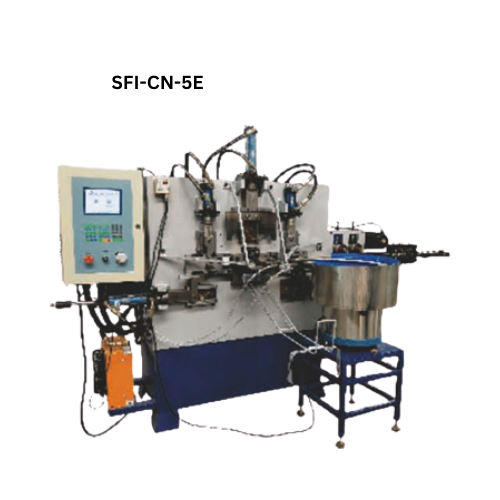

| Model | SFI-CN-8R | SFI-CN-5R | SFI-CN-5ER | SFI-CN-5E | SFI-CN-PF5 | SFI-CN-EP5 |
|---|---|---|---|---|---|---|
| Function | Rivet end | Rivet end | Mixed end | East-west | Outward hook | Custom made |
| Wire Size | 3.0-6.0 mm | 2.0-4.0 mm | 2.0-4.0 mm | 2.0-4.5 mm | 2.0-4.5 mm | 2.0-5.0 mm |
| Feeding Length | 750 mm / 360 mm | 650 mm / 360 mm | 650 mm / 360 mm | 650 mm / 360 mm | 650 mm / 360 mm | 650 mm / 360 mm |
| Production Rate | 12 pcs per minute | 16 pcs per minute | 12-14 pcs per minute | 20 pcs per minute | 25 pcs per minute | 12 pcs per minute |
| Power | 7.5 kw | 7.5 kw | 5.5 kw | 5.5 kw | 5.5 kw | 5.5 kw |
| Size (L x W x H) | 230 x 165 x 205 cm | 210 x 127 x 205 cm | 210 x 150 x 205 cm | 210 x 120 x 190 cm | 210 x 120 x 190 cm | 230 x 165 x 205 cm |
| Weight | 1400.0 kg | 1300.0 kg | 1300.0 kg | 1200.0 kg | 1000.0 kg | 1350.0 kg |
