Special Purpose Machine

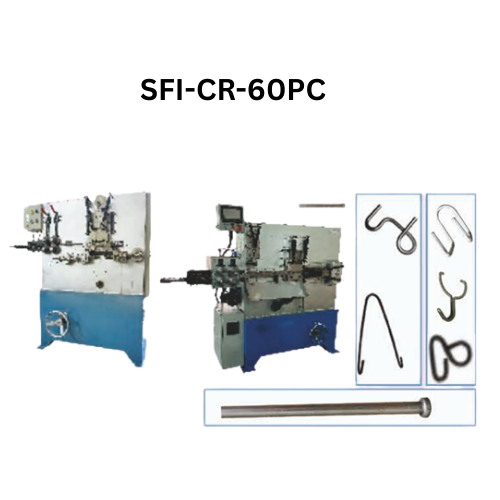

SFI-CR Series
Mechanical wire bending for 2D or 3D wire forms in round or flat materials.
Wire forming with gear wheel transport
- Designed for iron, steel, aluminum, copper, and stainless wire.
- Supports round or flat wire forms in 2D or 3D.
- Gear wheel transport with PLC and stepper motor.
- Precision can reach ±0.3 mm.
Technical Parameter
Specifications extracted from the provided image.
| Model | SFI-CR-35PC | SFI-CR-45PC | SFI-CR-60PC | SFI-CR-50 |
|---|---|---|---|---|
| Wire size | 1.5-3.5 mm | 2.0-4.5 mm | 2.0-6.0 mm | 2.0-5.0 mm |
| Feeding length | 200 mm | 300 mm | 600 mm | 300 mm |
| Production capacity/minute | 60 pcs | 50-60 pcs | 30-40 pcs | 60 pcs |
| Motor power | 1.5 kw | 2.2 kw | 5.5 kw | 2.2 kw |
| Dimensions (L x W x H) mm | 1630 x 650 x 1850 | 1630 x 650 x 1850 | 1830 x 650 x 1850 | 1630 x 650 x 1850 |
| Weight | 800 kg | 800 kg | 900 kg | 800 kg |
