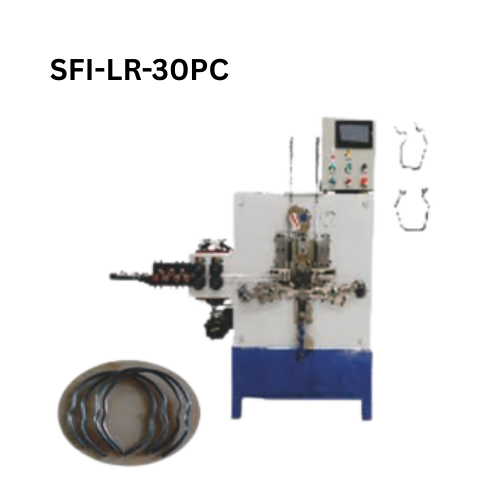

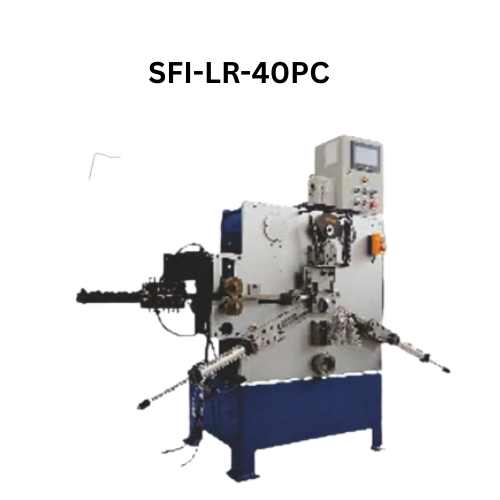

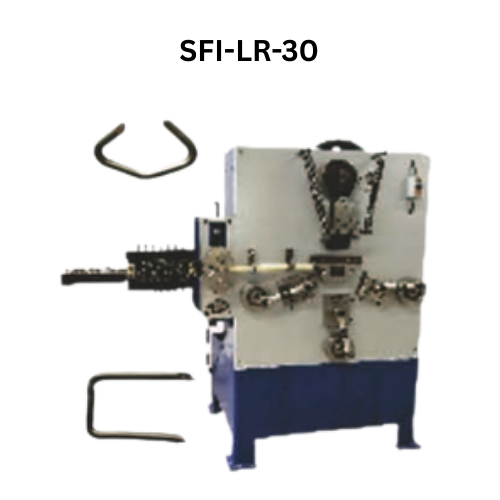

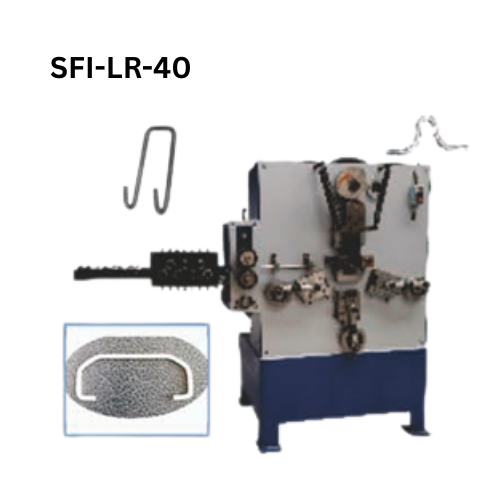

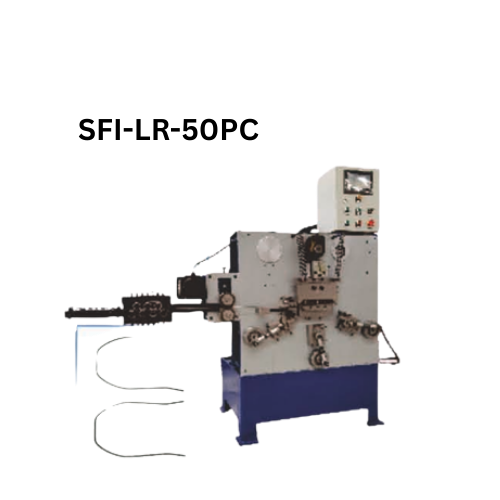

Special Purpose Machine

SFI-LR Series

Mechanical wire bending machines with chain wheel transport and optional PLC touch screen.

SFI-LR-30 SFI-LR-40 SFI-LR-30PC SFI-LR-40PC SFI-LR-50PC
Special Purpose Machine SFI-LR Series

Mechanical wire bending with chain wheel transport

  • Chain wheel transport with optional PLC and touch screen.
  • Fast operation with stepper motor precision of ±0.3-0.5 mm.
  • Five model options covering 1.5 mm to 4.5 mm wire sizes.
  • Feeding length options up to 500 mm.
Request Quote Back to Category

Technical Parameter

Specifications extracted from the provided image.

Model SFI-LR-30 SFI-LR-40 SFI-LR-30PC SFI-LR-40PC SFI-LR-50PC
Wire size 1.5-3.0 mm 2.0-4.0 mm 1.5-3.0 mm 2.0-4.0 mm 2.0-4.5 mm
Feeding length 200 mm 300 mm 200 mm 300 mm 500 mm
Production capacity/minute 60 pcs 60 pcs 60 pcs 60 pcs 50 pcs
Motor power 1.5 kw 2.2 kw 1.5 kw 2.2 kw 2.2 kw
Dimensions (L x W x H) mm 125 x 86 x 150 135 x 86 x 150 125 x 86 x 170 135 x 86 x 170 145 x 90 x 170
Weight 600 kg 600 kg 650 kg 650 kg 800 kg
