Special Purpose Machine

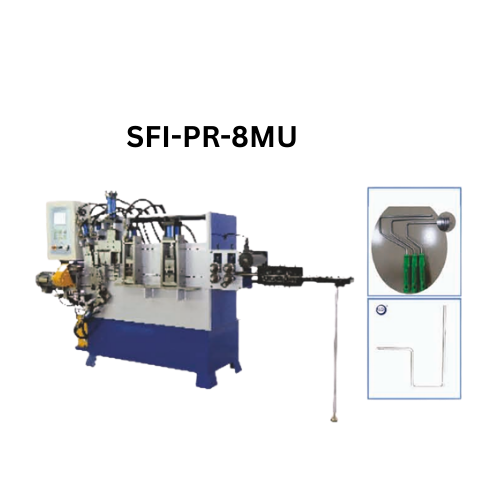

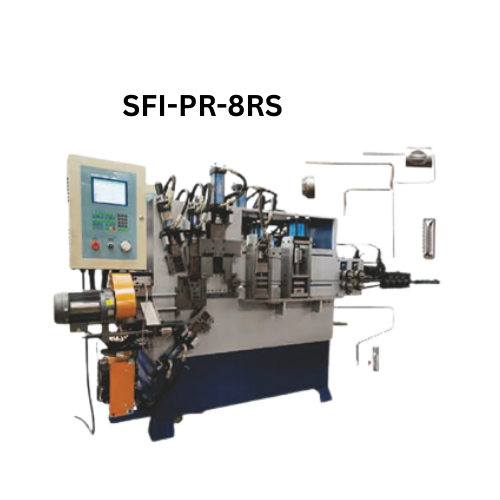

SFI-PR-8S / SFI-PR-8RS / SFI-PR-8MU
Paint roller handle frame production with chamfering, threading, and long-type options.
Paint roller handle frame production
- Produces paint roller handle frames with precision and stability.
- Handles lip stamping, threading, and end chamfering automatically.
- Plastic cover dressing device available as manual or inline automatic type.
- Optional pin making machine available upon request.
- High-efficiency automation reduces labor and power use with consistent output.
- Plastic gripper available upon request.
Technical Parameter
Specifications extracted from the provided image.
| Model | SFI-PR-8S | SFI-PR-8RS | SFI-PR-8MU |
|---|---|---|---|
| Function | Chamfering | Chamfering + Threading | Overdue long type |
| Wire Size | 3.0-8.0 mm | 3.0-8.0 mm | 3.0-8.0 mm |
| Feeding Length | 0-500 mm | 0-500 mm | 0-900 mm |
| Production Capacity | 16 pcs per minute | 12 pcs per minute | 12-16 pcs per minute |
| Speed Up Version | 23 pcs per minute | 20 pcs per minute | 23 pcs per minute |
| Motor Power | 5.5 kw | 5.5 kw | 5.5 kw |
| Dimensions (L x W x H) | 230 x 130 x 192 cm | 230 x 130 x 192 cm | 245 x 130 x 195 cm |
| Weight | 1300 kg | 1350 kg | 1400 kg |
