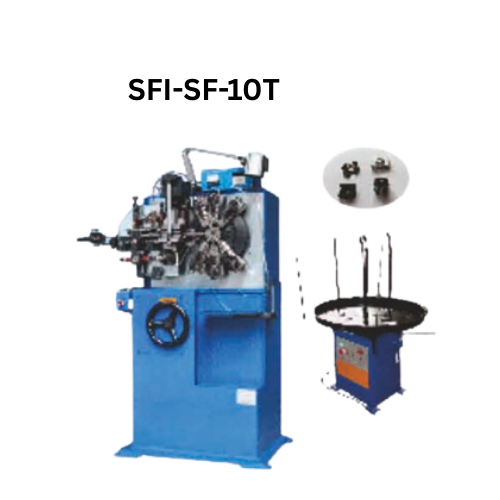

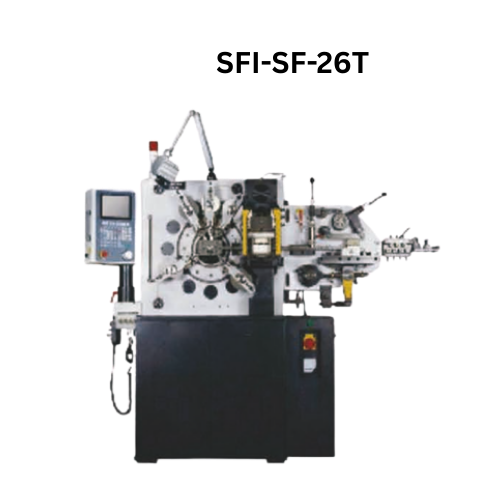

Special Purpose Machine

SFI-SF Series

Flat wire bending machines designed for fast, accurate molding of thin strip materials.

SFI-SF-10T SFI-SF-26T SFI-SF-38T
Special Purpose Machine SFI-SF Series

High-speed flat wire bending

  • Designed for fast output and complex stamping structures.
  • Fully automatic with feeding, punching, cutting, and folding.
  • Delivers bend-finished products in one cycle.
  • Suited for precision industries such as electronics and hardware clips.
Request Quote Back to Category

Technical Parameter

Specifications extracted from the provided image.

Model SFI-SF-10T SFI-SF-26T SFI-SF-38T
Length of Wire Feeding 150 mm 200 mm 320 mm
Width of Strip Wire 10 mm 30 mm 50 mm
Thickness of Strip Wire 0.1-0.5 mm 0.3-1.2 mm 0.8-2.0 mm
Pressure 1500 Kg 10000 Kg 30000 Kg
Speed 80-100 pcs/minute 60-80 pcs/minute 40-60 pcs/minute
Power 2.2 kw 3.7 kw 7.7 kw
L * W * H (mm) 1200 * 800 * 1600 1600 * 800 * 1600 1700 * 900 * 1800
Weight 850 Kg 1200 Kg 1400 Kg
