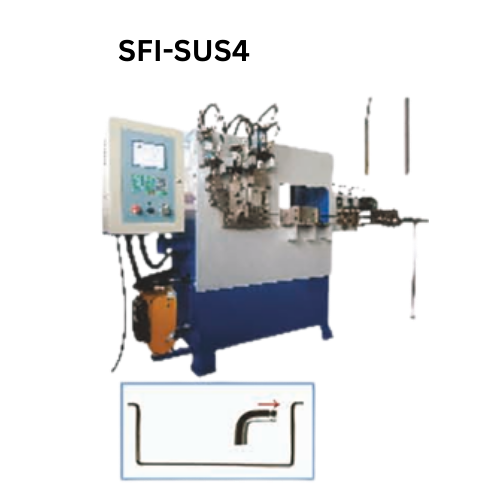

Special Purpose Machine
SFI-SUS / 2D-3D Series
Stainless steel and 2D/3D wire forming solutions with flexible feeding length and output capacity.
Stainless steel and 2D/3D wire forming
- Supports wire sizes from 2.0 mm up to 8.0 mm.
- Feeding length range up to 800 mm depending on model.
- Production capacity reaches 30 pcs per minute on SFI-2D60-6.
- Stable motor power options from 5.5 kw to 7.5 kw.
Technical Parameter
Specifications extracted from the provided image.
| Model | SFI-SUS4 (stainless steel) | SFI-SUS6 (stainless steel) | SFI-2D60-6 | SFI-3D80-8 | SFI-3D80-10 |
|---|---|---|---|---|---|
| Wire size | 2.0-4.0 mm | 2.0-6.0 mm | 2.0-6.0 mm | 3.0-8.0 mm | 3.0-8.0 mm |
| Feeding length | 100-500 mm | 100-800 mm | 10-500 mm | 10-500 mm | 10-500 mm |
| Production capacity/minute | 15-18 pcs | 15-18 pcs | 30 pcs | 18-20 pcs | 18-20 pcs |
| Motor power | 5.5 kw | 5.5 kw | 7.5 kw | 5.5 kw | 5.5 kw |
| Dimensions (L x W x H) cm | 190 x 130 x 180 | 190 x 130 x 180 | 190 x 130 x 180 | 215 x 130 x 190 | 215 x 130 x 190 |
| Weight | 1300 kg | 1300 kg | 1300 kg | 1400 kg | 1500 kg |
