Special Purpose Machine

SFI-XS Series

2D wire bending welding lines for circles, ovals, squares, and diamond shapes.

SFI-XS-6W SFI-XS-8W SFI-XS-10W SFI-XS-2060 SFI-XS-2080

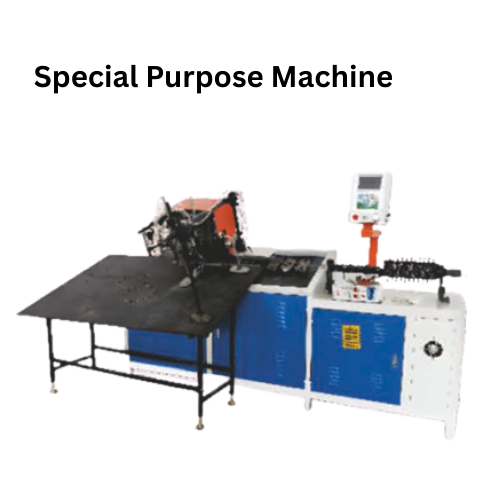

Special Purpose Machine SFI-XS Series

2D wire bending with automatic welding

  • Ideal for shapes beyond circles, including ovals, squares, and diamonds.
  • Automatic bending and welding provides stable, repeatable joints.
  • Standard welding uses resistance butt welding.
  • Plasma welding available for high-quality or small welding points.
Request Quote Back to Category

Technical Parameter

Specifications extracted from the provided image.

Model SFI-XS-6W SFI-XS-8W SFI-XS-10W SFI-XS-2060 SFI-XS-2080
Wire Size 2.0-6.0 mm 3.0-8.0 mm 4.0-10.0 mm 2.0-6.0 mm 3.0-8.0 mm
Circle Diameter 80-800 mm 80-800 mm 80-800 mm 50-1000 mm 50-1000 mm
Welding Power 40 KVA 63 KVA 80 KVA 40 KVA 63 KVA
Production Rate 25-40 pcs/min 20-30 pcs/min 15-25 pcs/min 25-40 pcs/min 20-30 pcs/min
Servo Motor 2.0 kw 2.3 kw 3.8 kw 4.0 kw 5.5 kw
Motor Power 2.2 kw 2.2 kw 4.0 kw 2.2 kw 2.2 kw
Fixture Weight 200 kg 200 kg 200 kg 200 kg 200 kg
Weight 1000 kg 1200 kg 1400 kg 1500 kg 1600 kg
Size (L x W x H) cm 210 x 150 x 165 210 x 150 x 165 220 x 160 x 165 280 x 160 x 168 280 x 160 x 168
